Everything You Need to Know About Adjustable Ground Screws

Everything You Need to Know About Adjustable ground screws

Industry Background and Market Demand

The construction and renewable energy sectors increasingly demand efficient, cost-effective, and environmentally friendly foundation solutions. Traditional concrete foundations, while reliable, often involve high material costs, extended curing times, and significant environmental impact. In contrast, Adjustable ground screws have emerged as a versatile alternative, particularly for projects requiring quick installation, minimal site disruption, and adaptability to uneven terrain.

Market growth is driven by the rise of solar farms, modular buildings, and temporary infrastructure, where speed and adjustability are critical. Regulatory pressures to reduce carbon emissions further accelerate adoption, as ground screws eliminate the need for carbon-intensive concrete. According to industry analysts, the global ground screw market is projected to expand at a CAGR of 8–12% over the next decade, with Europe and North America leading adoption due to stringent sustainability mandates.

Core Concept and Key Technology

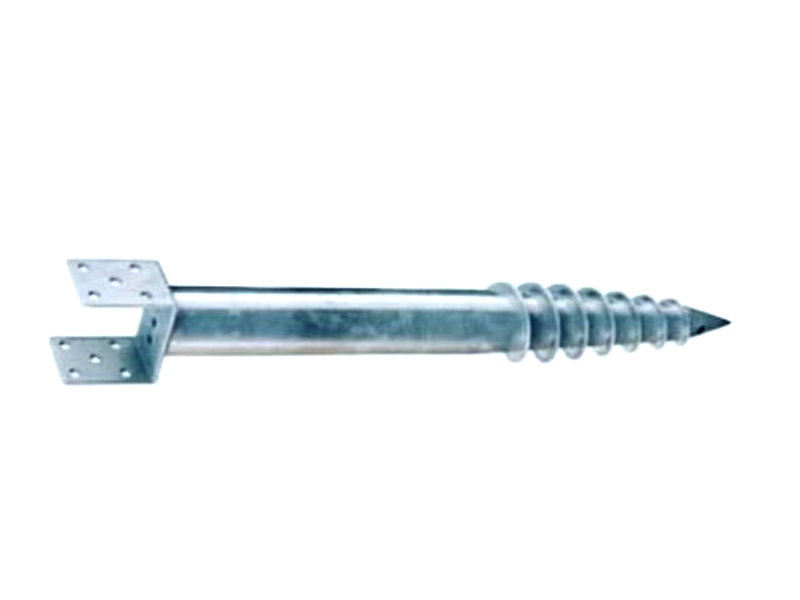

Adjustable ground screws are helical piles designed to anchor structures securely into the ground without excavation. Unlike standard ground screws, they incorporate a height-adjustment mechanism, typically a threaded shaft or telescopic extension, allowing precise leveling post-installation. This feature is crucial for applications like solar panel mounting, where even minor slope variations can impact efficiency.

The helical plates (flights) provide load-bearing capacity by displacing soil rather than removing it, ensuring stability while minimizing ground disturbance. Advanced designs integrate galvanized steel or powder-coated finishes to resist corrosion, extending service life in harsh environments.

Product Structure, Materials, and Manufacturing

1. Structural Components

- Helical Blade: The primary load-bearing element, available in single or multiple flights depending on soil conditions.

- Central Shaft: Typically made of high-strength steel, with a threaded or telescopic section for height adjustment.

- Drive Head: Connects to installation equipment (e.g., hydraulic torque motors) for efficient screwing.

- Adjustment Mechanism: May include a nut-and-Bolt system or a ratcheting collar for fine-tuning.

2. Material Selection

- Carbon Steel (Hot-Dip Galvanized): Standard for most applications, offering a balance of strength and corrosion resistance.

- Stainless Steel: Used in coastal or chemically aggressive soils, though at a higher cost.

- Powder-Coated Options: Provide additional UV and abrasion resistance for above-ground exposure.

3. Manufacturing Process

- Laser Cutting: Ensures precision in helical blade shaping.

- Robotic Welding: Maintains structural integrity under load.

- Post-Treatment: Galvanization or coating processes enhance durability.

Key Factors Affecting Performance

1. Soil Conditions: Clay, sand, or rocky substrates require different blade configurations. Soil testing is recommended before installation.

2. Load Capacity: Determined by screw diameter, blade size, and depth of installation. Engineers must calculate static and dynamic loads (e.g., wind forces on solar arrays).

3. Corrosion Resistance: Coastal or industrial sites demand higher-grade materials to prevent premature failure.

4. Installation Accuracy: Misalignment during driving can reduce load-bearing capacity. Skilled operators and torque monitoring are essential.

Supplier Selection Criteria

When sourcing adjustable ground screws, consider:

- Certifications: ISO 9001, CE marking, or independent load-testing reports.

- Customization: Ability to modify blade designs or shaft lengths for project-specific needs.

- Lead Times: Suppliers with local manufacturing reduce logistics delays.

- Technical Support: Providers offering soil analysis and engineering consultation add value.

Common Challenges and Industry Pain Points

- Soil Variability: Inconsistent ground conditions may necessitate on-site adjustments or hybrid solutions (e.g., combining screws with small concrete pads).

- Misconceptions About Durability: Some stakeholders still favor traditional foundations due to unfamiliarity with long-term performance data.

- Installation Errors: Over-torquing can strip threads, while under-torquing risks instability. Training and calibrated equipment mitigate these risks.

Applications and Case Studies

1. Solar Energy

A 50 MW solar farm in Germany reduced installation time by 40% using adjustable ground screws, adapting seamlessly to undulating terrain.

2. Modular Construction

A UK-based housing developer employed telescopic ground screws to stabilize prefab homes on sloped sites, avoiding costly earthworks.

3. Event Infrastructure

Temporary stages and fencing at festivals benefit from quick installation and removal without leaving permanent scars on the landscape.

Current Trends and Future Outlook

1. Smart Adjustments: Integration with IoT sensors to monitor load and settlement in real time.

2. Hybrid Systems: Combining ground screws with geopolymer composites for ultra-high-load applications.

3. Automated Installation: Robotics and AI-guided machinery to improve precision and reduce labor costs.

FAQ

Q: How deep should adjustable ground screws be installed?

A: Depth depends on soil type and load requirements. Typically 1–3 meters, with deeper installations for softer soils.

Q: Can they be reused?

A: Yes, screws for temporary structures can be extracted and redeployed with proper handling.

Q: Do they work in frozen ground?

A: Specialized designs with hardened steel blades are available for permafrost regions.

Q: What maintenance is required?

A: Minimal—annual inspections for corrosion or loosening are recommended in harsh environments.

By addressing these technical and market-driven aspects, adjustable ground screws present a compelling solution for modern construction challenges, balancing efficiency, sustainability, and adaptability.
