Ground Screw Extensions: A Flexible Solution for Adjusting Foundation Heights

ground screw Extensions: A Flexible Solution for Adjusting Foundation Heights

Industry Background and Market Demand

In construction and infrastructure projects, achieving a level and stable foundation is critical. Traditional methods like concrete footings or deep-driven piles often lack flexibility when height adjustments are required post-installation. ground screw foundations, however, offer a modular and adaptable alternative, particularly in scenarios where terrain variability or project modifications demand quick and reliable height adjustments.

The demand for Ground screw extensions has grown in sectors such as solar panel installations, modular housing, and temporary structures. These industries require foundations that can adapt to uneven terrain, accommodate future expansions, or comply with changing regulations. Unlike rigid concrete bases, ground screw extensions allow for precise height corrections without extensive rework, reducing both cost and downtime.

Core Concept and Key Technology

Ground screw extensions are modular components designed to increase the effective height of installed ground screws. They attach to the top of existing Screw piles, enabling vertical adjustments without removing or replacing the original foundation. The system typically consists of threaded couplers, extension shafts, and locking mechanisms to ensure stability under load.

The key technology lies in the threaded connection system, which maintains structural integrity while allowing incremental height changes. High-strength steel or galvanized components ensure durability, while precision manufacturing guarantees compatibility with standard ground screw profiles.

Product Structure, Materials, and Manufacturing

A typical ground screw extension includes:

- Extension Shaft: A threaded rod or tube matching the diameter and pitch of the base screw.

- Coupler: A sleeve that connects the extension to the original pile, often with anti-rotation features.

- Load Plate: Distributes weight evenly when used with elevated structures.

Materials:

- Carbon Steel (Hot-Dip Galvanized): Offers corrosion resistance for outdoor applications.

- Stainless Steel: Used in highly corrosive environments, such as coastal areas.

- Powder-Coated Options: Provide additional protection in harsh industrial settings.

Manufacturing Process:

Extensions are precision-machined to ensure thread compatibility and load-bearing capacity. Quality control includes torque testing and stress analysis to verify performance under dynamic loads.

Critical Factors Affecting Performance

Several factors determine the effectiveness of ground screw extensions:

1. Thread Precision: Mismatched threads can lead to instability or premature wear.

2. Material Strength: Substandard steel may deform under heavy loads.

3. Corrosion Resistance: Poor coatings reduce lifespan in wet or saline conditions.

4. Installation Technique: Over-tightening can strip threads, while under-tightening risks loosening.

Supplier Selection and Supply Chain Considerations

When sourcing ground screw extensions, buyers should evaluate:

- Certifications: ISO 9001 or CE marks ensure compliance with industry standards.

- Material Traceability: Reputable suppliers provide mill certificates for raw materials.

- Customization Capabilities: Some projects require non-standard lengths or thread types.

- Lead Times: Just-in-time delivery is crucial for large-scale projects.

Common Challenges and Industry Pain Points

Despite their advantages, ground screw extensions present challenges:

- Compatibility Issues: Not all extensions fit every screw pile brand.

- Soil Variability: Loose or rocky soils may require additional stabilization.

- Load Redistribution: Extensions alter the foundation’s center of gravity, necessitating recalculations.

Applications and Case Studies

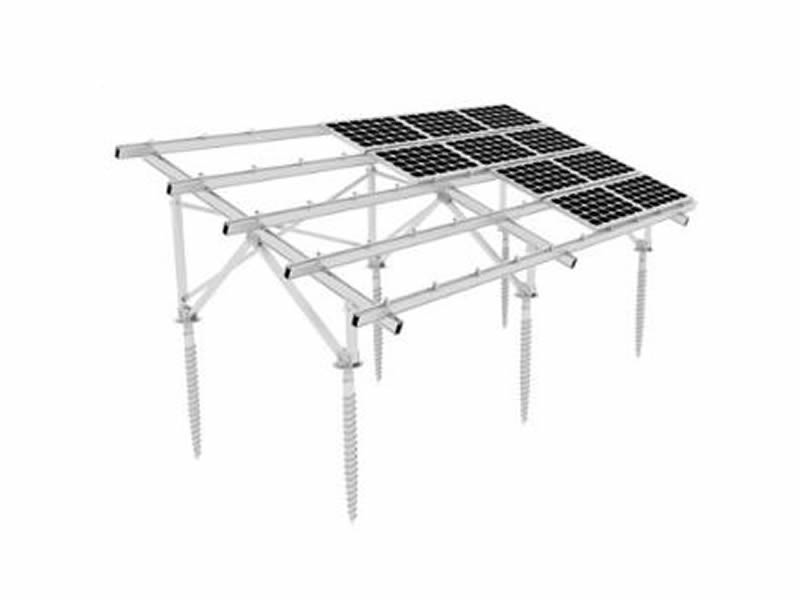

1. Solar Farms

Solar installations often require height adjustments due to uneven terrain. Ground screw extensions allow for quick leveling without re-driving piles, saving time and labor.

2. Modular Construction

Temporary classrooms or disaster-relief housing benefit from adjustable foundations, ensuring stability on sloped sites.

3. Boardwalks and Decking

Extensions enable precise height corrections in waterfront projects where soil erosion or tidal changes occur.

Current Trends and Future Developments

The market is shifting toward:

- Smart Extensions: Sensors to monitor load distribution and settlement.

- Lighter Alloys: High-strength aluminum for easier handling.

- Automated Installation: Robotic systems for precise height adjustments.

FAQ

Q: Can ground screw extensions be reused?

A: Yes, if undamaged and properly maintained, they can be detached and reinstalled.

Q: What is the maximum recommended extension height?

A: Typically, extensions should not exceed 30% of the original pile length to maintain stability.

Q: How do I verify compatibility with existing screws?

A: Check thread pitch, diameter, and load ratings with the manufacturer before purchase.

By addressing adaptability, durability, and ease of installation, ground screw extensions provide a forward-looking solution for modern foundation challenges. As industries prioritize efficiency and sustainability, their role in construction will continue to expand.
